Floor Joists
Transfer loads from the floor to the foundation walls.

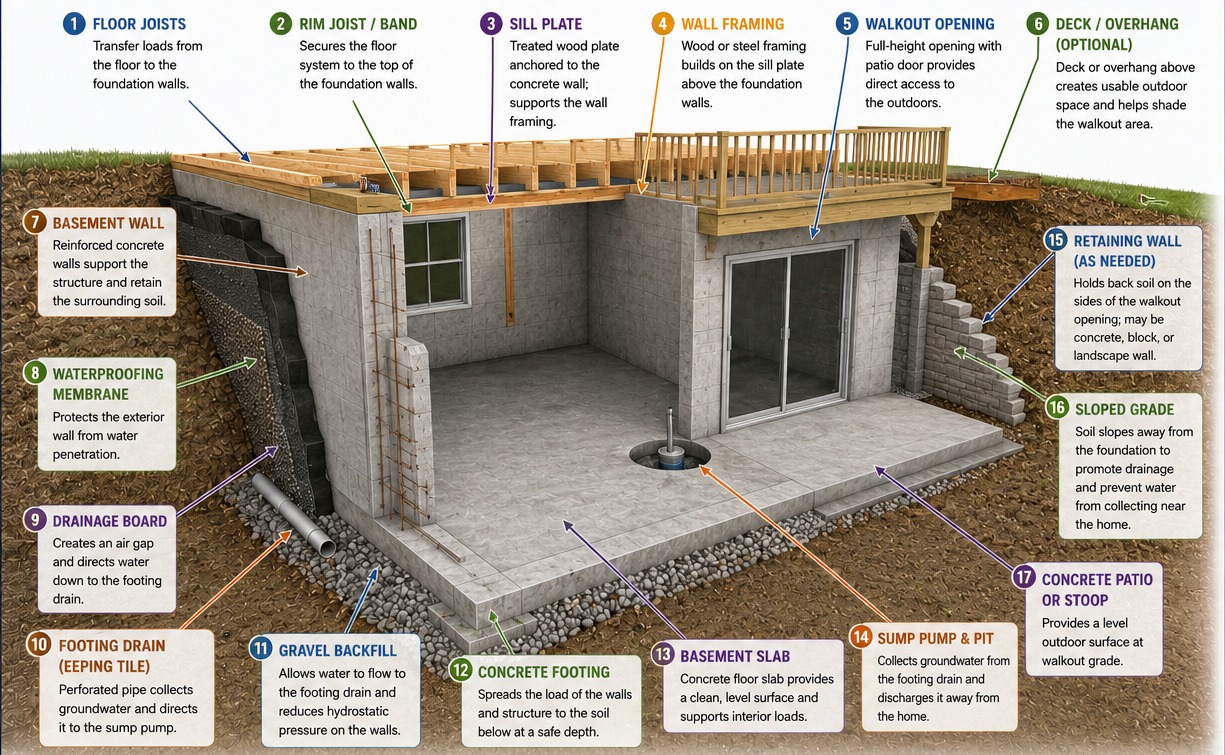

Walkout Basement Foundation Cutaway
Use the labeled cutaway to understand how the framing, foundation walls, waterproofing, drainage, slab, sump system, retaining walls, grading, and outdoor access work together.
The diagram highlights the major components that help a walkout basement support the home, manage soil pressure, prevent water intrusion, and provide usable outdoor access.
Component Summary
Each component plays a specific role in structure, moisture protection, drainage, access, or long-term durability.
Rim Joist / Band
Ties the floor joists together and secures the floor system to the foundation.
Sill Plate
Anchors the wall framing to the foundation and supports the wall framing above.
Wall Framing
Supports the structure above the foundation walls.
Walkout Opening
Full-height opening with patio door provides natural light and outdoor access.
Deck / Overhang (Optional)
Adds outdoor living space and shade above the walkout area.
Basement Wall
Reinforced concrete walls support the structure and retain surrounding soil.
Waterproofing Membrane
Prevents water from entering the foundation wall.
Drainage Board
Protects the membrane and directs water down toward the drain system.
Footing Drain (Weeping Tile)
Collects groundwater and directs it to the sump pump.
Gravel Backfill
Improves drainage and reduces hydrostatic pressure against the wall.
Concrete Footing
Supports foundation walls and spreads loads safely to the soil.
Basement Slab
Provides a durable, level floor surface for the basement.
Sump Pump & Pit
Collects water from the footing drain and discharges it away from the home.
Retaining Wall (As Needed)
Holds back soil on the sides of the walkout opening.
Sloped Grade
Directs surface water away from the foundation.
Concrete Patio or Stoop
Provides a stable outdoor surface at grade level.
Why It Matters & Planning Notes
Walkout basements perform best when structure, drainage, waterproofing, and site grading are planned as one complete system.
Key Benefits
- Natural light and ventilation
- Easy outdoor access from the basement level
- Ideal layout option for sloped lots
- Adds valuable finished living space
Important Notes
- Proper drainage and waterproofing are essential for a dry, durable basement.
- Slope the grade away from the home, commonly 6 inches over the first 10 feet minimum.
- Inspect and maintain the sump pump system regularly.
- Always follow local building codes and use quality materials and workmanship.
Typical Installation Sequence
- 1Excavate
- 2Footings
- 3Walls
- 4Waterproofing & Drainage
- 5Backfill
- 6Framing
- 7Finishes
