Floor System
Subfloor sheathing is glued and nailed to floor joists.

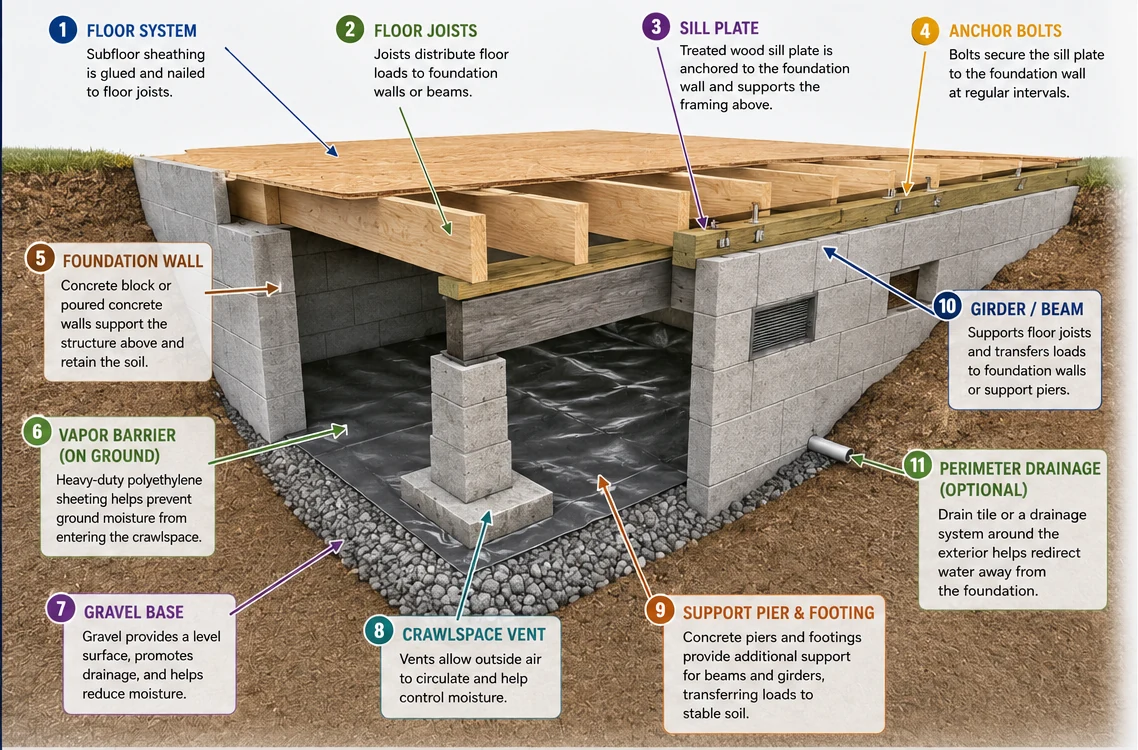

Crawlspace Foundation Cutaway Diagram
Why It Matters:
A well-built crawlspace foundation improves durability, energy efficiency, and indoor air quality while providing accessible space for utilities and inspections.
Component Details
Each component plays a specific role in supporting the home, managing moisture, improving airflow, or moving water away from the foundation.
Floor Joists
Joists distribute floor loads to foundation walls or beams.
Sill Plate
Treated wood sill plate is anchored to the foundation wall and supports the framing above.
Anchor Bolts
Bolts secure the sill plate to the foundation wall at regular intervals.
Foundation Wall
Concrete block or poured concrete walls support the structure above and retain the soil.
Vapor Barrier (On Ground)
Heavy-duty polyethylene sheeting helps prevent ground moisture from entering the crawlspace.
Gravel Base
Gravel provides a level surface, promotes drainage, and helps reduce moisture.
Crawlspace Vent
Vents allow outside air to circulate and help control moisture.
Support Pier & Footing
Concrete piers and footings provide additional support for beams and girders, transferring loads to stable soil.
Girder / Beam
Supports floor joists and transfers loads to foundation walls or support piers.
Perimeter Drainage (Optional)
Drain tile or a drainage system around the exterior helps redirect water away from the foundation.
| # | Component | Primary Role | Why It Matters |
|---|---|---|---|
| 1 | Floor System | Subfloor sheathing is glued and nailed to floor joists. | Subfloor sheathing provides a solid base for flooring. |
| 2 | Floor Joists | Joists distribute floor loads to foundation walls or beams. | Transfer loads from the floor to beams or foundation walls. |
| 3 | Sill Plate | Treated wood sill plate is anchored to the foundation wall and supports the framing above. | Connects the framing to the foundation and distributes loads evenly. |
| 4 | Anchor Bolts | Bolts secure the sill plate to the foundation wall at regular intervals. | Secure the home to the foundation and resist uplift from wind. |
| 5 | Foundation Wall | Concrete block or poured concrete walls support the structure above and retain the soil. | Supports the structure and retains the soil around the home. |
| 6 | Vapor Barrier (On Ground) | Heavy-duty polyethylene sheeting helps prevent ground moisture from entering the crawlspace. | Helps control moisture and improves indoor air quality. |
| 7 | Gravel Base | Gravel provides a level surface, promotes drainage, and helps reduce moisture. | Aids drainage, provides a stable surface, and helps minimize moisture. |
| 8 | Crawlspace Vent | Vents allow outside air to circulate and help control moisture. | Allows ventilation to reduce moisture buildup in the crawlspace. |
| 9 | Support Pier & Footing | Concrete piers and footings provide additional support for beams and girders, transferring loads to stable soil. | Adds support under beams/girders and helps distribute loads to firm soil. |
| 10 | Girder / Beam | Supports floor joists and transfers loads to foundation walls or support piers. | Carries loads from joists and transfers them to walls or piers. |
| 11 | Perimeter Drainage (Optional) | Drain tile or a drainage system around the exterior helps redirect water away from the foundation. | Helps prevent water collecting around the foundation. |
