The real question isn’t “Which is cheaper?”—it’s “Which scope are you buying?”

Builders and homeowners often compare:

• City water: “Tap fee + meter + trench + monthly bill”
• Well water: “Drilling + pump + pressure tank + filtration + maintenance”

But new construction costs aren’t uniform line-items. The same category can include completely different scope depending on your lot and code requirements:

• City water might be a simple short service run… or it might trigger large connection fees plus a long offsite extension.
• A well might be an easy 100–150 ft drill… or it might require deeper drilling, steel casing, specialty rigs for rock, plus serious filtration.

That’s why the most accurate approach is to treat this as a site utilities system design problem, not a yes/no decision.

2026 baseline cost ranges (estimates)

Below are typical 2026 estimate ranges you’ll see referenced across contractors and cost guides. Use them as “order-of-magnitude” planning numbers—not final budgeting numbers.

Private well (new residential) — typical 2026 ranges

According to Angi’s 2026 data update (updated March 17, 2026), drilling a well averages $5,500 nationally, with a wide range of $1,800 to $24,500, and common pricing of about $25 to $65 per foot depending on depth and casing type. Angi also notes difficult conditions can push costs to $50 to $75 per foot. Additional line items include pumps ($900–$2,500), permits ($200–$500), water testing ($50–$600), and ongoing maintenance ($200–$900/year).
Source: https://www.angi.com/articles/how-much-does-well-drilling-cost.htm

A practical “new build” budgeting range for a complete, usable private-well system commonly lands around:

• $6,000 to $18,000+ total (common), but can exceed $25,000 in deep/rocky areas or with extensive treatment needs.

City water connection — typical 2026 ranges

Municipal connection costs are harder to generalize because they’re driven by local fee schedules and whether the water main is already adjacent to your lot.

One example that shows how large fees can get: the City of Hayward, California lists water connection (facilities) fees effective 9/1/2026 at $12,950 (3/4" meter) and $21,575 (1" meter), and separate sewer connection fees for single-family/duplex/etc. of $14,559 effective 9/1/2026.
Source: https://hayward-ca.gov/residents/utilities/water-and-sewer-rates/water-sewer-and-recycled-water-connection-fees

In many parts of the country, you may see much lower tap/meter fees than high-cost California cities—but you can also run into surprise costs when:

• the main isn’t close,
• the utility requires upsizing infrastructure,
• or your jurisdiction charges system development/impact fees.

So a realistic “city water” planning range often looks like:

• $2,000 to $8,000 when the main is close and fees are modest
• $10,000 to $40,000+ in high-fee jurisdictions and/or when offsite work is required (and that’s before you even talk about sewer)

Why well costs vary so widely (even in the same county)

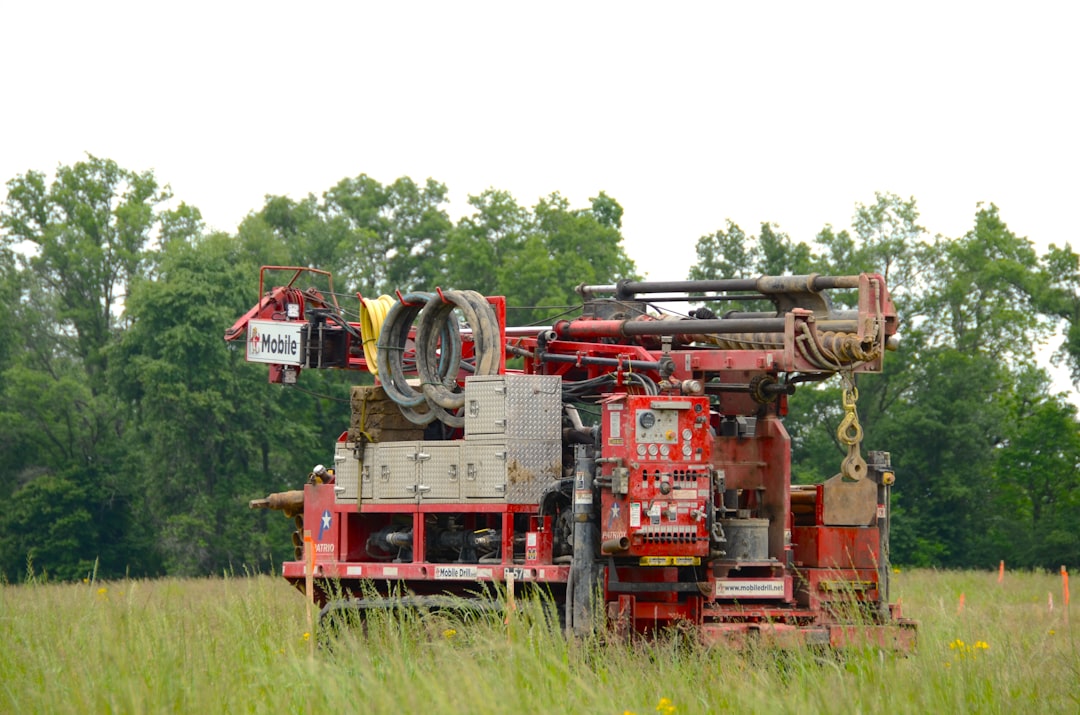

1) Depth to water + geology (the biggest swing factor)

On a spreadsheet, “$25–$65 per foot” looks straightforward. In the field, depth is only half the story. What you drill through matters just as much:

• Sand/gravel vs clay vs fractured rock
• Caving formations needing more casing
• Need for steel casing instead of PVC in certain conditions

Angi’s 2026 guidance shows common depths for residential wells often fall in the 50–200 ft range, but water tables can be much deeper depending on region and drought conditions.
Source: https://www.angi.com/articles/how-much-does-well-drilling-cost.htm

2) Casing diameter/material and code requirements

Larger diameter casing and steel casing can increase costs dramatically. Angi lists casing costs roughly $6–$10 per foot for PVC and $30–$130+ per foot for steel depending on diameter.
Source: https://www.angi.com/articles/how-much-does-well-drilling-cost.htm

This becomes very “local-code specific.” Some areas strongly prefer or require certain materials or grouting methods, and inspectors can require corrective work if the wellhead isn’t protected properly.

3) Distance from well to the house (trenching + wiring + plumbing)

Even if the well itself is reasonably priced, the connection to the home can get expensive—especially on large lots.

Angi notes supply lines between home and well can run $50 to $150 per foot (water and electric supply lines), which means a long run can quietly add thousands.
Source: https://www.angi.com/articles/how-much-does-well-drilling-cost.htm

This is where lot layout intersects with house-plan decisions:

• Detached garages, barns, and ADUs can push you to design for future water runs
• Long driveways often correlate with long utility trenches
• Slab-on-grade vs basement can change where utilities enter the house and how trenching is staged

4) Pump sizing, pressure tank, and “how your house uses water”

A larger home isn’t just “more fixtures”—it’s more simultaneous demand:

• multiple showers running at once,
• higher irrigation load,
• larger tubs,
• additional hose bibs,
• basement bathrooms.

Angi lists well pumps $900–$2,500 and pressure tank costs that vary by size (many homeowners pay $300–$500 plus installation).
Source: https://www.angi.com/articles/how-much-does-well-drilling-cost.htm

A key nuance for new builds: your mechanical room location, vertical height to upper floors, and fixture count can influence pump/pressure design. This isn’t just a “water source” decision—it’s a house-system decision.

5) Water quality = treatment equipment (the “it depends” category)

In some regions, well water is clean and simple. In others, you might be budgeting for:

• sediment filtration
• softeners (hard water)
• iron/sulfur treatment (smell, staining)
• UV disinfection
• reverse osmosis for drinking lines

Angi cites purification systems ranging broadly from $1,000 to $15,000 plus labor $200–$400.
Source: https://www.angi.com/articles/how-much-does-well-drilling-cost.htm

This is one reason two neighbors can have very different costs: one hits clean aquifer water; the other needs serious treatment to meet household expectations (or lender/inspection requirements).

Why city water connection costs vary so widely

1) The fee schedule is local—and can dwarf the construction work

Municipal “tap fees,” “connection fees,” “facilities fees,” and “system development charges” can be the largest single cost in the entire comparison.

Hayward, CA is a good example of published, 2026-dated fees:

• Water connection fee (3/4" meter): $12,950 (effective 9/1/2026)
• Water connection fee (1" meter): $21,575 (effective 9/1/2026)
• Sewer connection fee (single-family/duplex/etc.): $14,559 (effective 9/1/2026)
  Source: https://hayward-ca.gov/residents/utilities/water-and-sewer-rates/water-sewer-and-recycled-water-connection-fees

In other regions, you might see far lower published numbers—but the point is the same: fees can dominate.

2) Is the main actually “at the lot,” or merely “in the area”?

Real-world scenarios:

• The water main is across the street (simple bore/trench + meter)
• The main is at the front of the subdivision, but your lot is 600 feet away
• The main is not sized for new demand, and the utility requires upgrades
• You must extend main line to reach your property (offsite work, easements, design approvals)

Those “offsite” situations turn a connection into a mini infrastructure project.

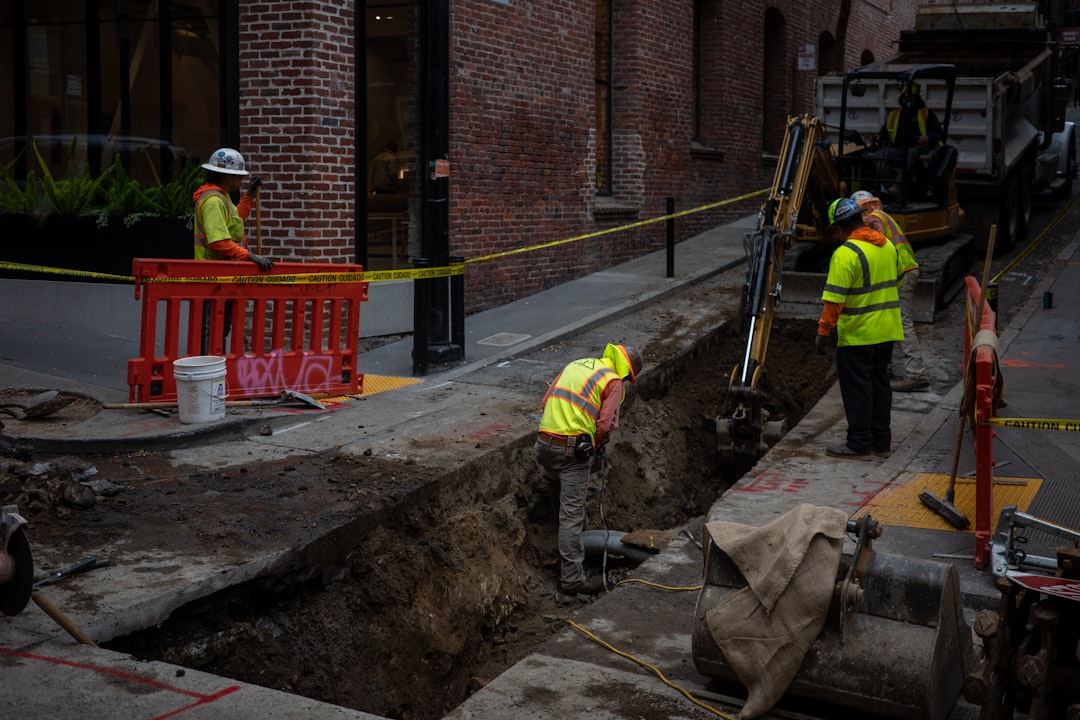

3) Trenching, paving, and restoration can be the sleeper cost

Even when the fee schedule is modest, the physical installation cost can balloon if you have:

• deep trench requirements due to frost depth,
• rock trenching,
• road cuts,
• sidewalk/curb replacement,
• traffic control requirements.

This is where the same house plan costs more in a tight urban infill lot than on an open suburban lot—simply because restoration is stricter and more expensive.

4) Pressure and fire-flow considerations (sometimes indirect but real)

Some jurisdictions require certain flow/pressure thresholds, which can affect:

• meter sizing,
• backflow requirements,
• or even upgrades if the system can’t support needed demand.

While this is more common in commercial work, it can surface in residential builds—especially large homes, long service runs, or certain hillside areas.

Side-by-side: budgeting scenarios (illustrative examples)

These examples are not quotes—just realistic “how it can play out” planning models to show why costs swing.

Scenario A: Suburban lot with nearby main (moderate-fee area)

City water

• Connection/tap/meter fees: $1,500–$4,000 (varies by utility)
• Trench + service line + meter setting: $1,500–$4,000
• Total (estimated): $3,000–$8,000

Well

• Drill 150 ft @ $25–$65/ft: $3,750–$9,750 (Angi range)
• Pump + pressure tank + install: $1,200–$3,500 (Angi component ranges)
• Permit + testing: $250–$1,100 (Angi component ranges)
• Total (estimated): $5,200–$14,350 (before major treatment)

Scenario B: Rural lot, long run, moderate well depth but needs treatment

Well

• Drill 200 ft: $5,000–$13,000+
• Long trench/electrical to house (e.g., 250 ft @ $50–$150/ft): $12,500–$37,500 (Angi line-cost range)
• Treatment system: $1,000–$8,000+ (can be higher; Angi notes up to $15,000)
• Total (estimated): $18,500–$58,000+ depending on trenching difficulty and treatment needs

In this scenario, the “well is cheaper” assumption often collapses—not because drilling is always expensive, but because distance and site conditions are expensive.

Scenario C: High-fee city connection market (fees dominate)

City water

• Water connection fee (example: Hayward 3/4"): $12,950 (2026 effective)
• Sewer connection fee (example: Hayward SFR): $14,559 (2026 effective)
• Plus trench/service/restoration: $2,000–$10,000+
• Total (estimated): $29,500–$37,500+ (and could be higher with restoration/offsite work)
  Source: https://hayward-ca.gov/residents/utilities/water-and-sewer-rates/water-sewer-and-recycled-water-connection-fees

In this kind of market, a private well may not even be allowed—but the cost lesson is the same: local policy can overwhelm “typical” national averages.

The “hidden” construction-cost tie-ins most people miss

Your house plan changes the water-system scope

A 1,600 sq ft ranch and a 3,600 sq ft two-story can produce very different water-system requirements:

• More bathrooms = higher peak demand
• Long pipe runs inside the house change pressure performance expectations
• Luxury fixtures (body sprays, large soaking tubs, multiple rain heads) can push you into higher capacity systems

So even if the well or city service is identical, the plumbing design and equipment might not be.

Foundation type and site layout change utility routing cost

• Slab-on-grade often means different entry points and trench coordination
• Basements can add complexity in routing and penetrations
• Walkout lots and steep grades can force longer trenching paths

Local inspections and permitting complexity

Angi cites well permits commonly $200–$500 (2026 data), but local jurisdictions can layer on:

• setback requirements from septic/drainfields,
• minimum well depth rules,
• disinfection and lab testing documentation,
• additional inspections.

Source: https://www.angi.com/articles/how-much-does-well-drilling-cost.htm

Maintenance and long-term cost: the comparison is not apples-to-apples

City water: predictable billing, less equipment ownership

Pros:

• No pump replacement risk on your dime (generally)
• Often consistent quality (but not always)
• Easy financing and resale familiarity

Cons:

• Monthly bill and rising rates
• Potential restrictions during drought
• You may still need filtration depending on local water quality

Well water: you “own the utility,” for better and worse

Pros:

• No monthly water bill to a utility (but you pay electricity + maintenance)
• Potentially excellent water quality if local aquifer is good
• Independence in rural areas

Cons:

• Equipment replacement cycles (pump, pressure tank, treatment media)
• Periodic testing and maintenance
• Risk of dry well or changing water quality over time

Angi estimates annual well maintenance of $200–$900 and additional electricity of $100–$400/year for pump operation (2026 data).
Source: https://www.angi.com/articles/how-much-does-well-drilling-cost.htm
